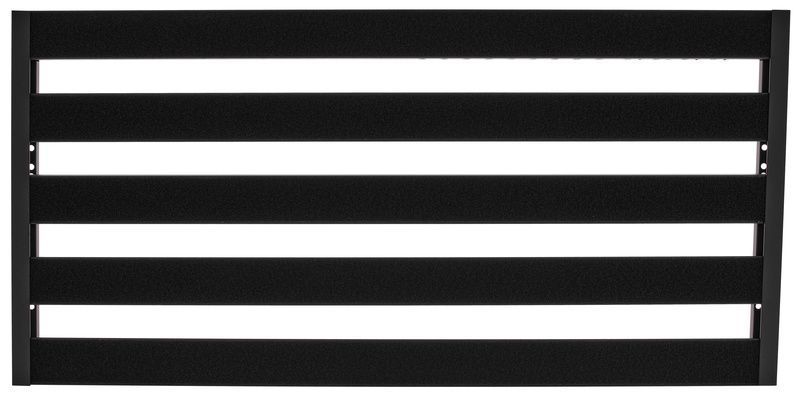

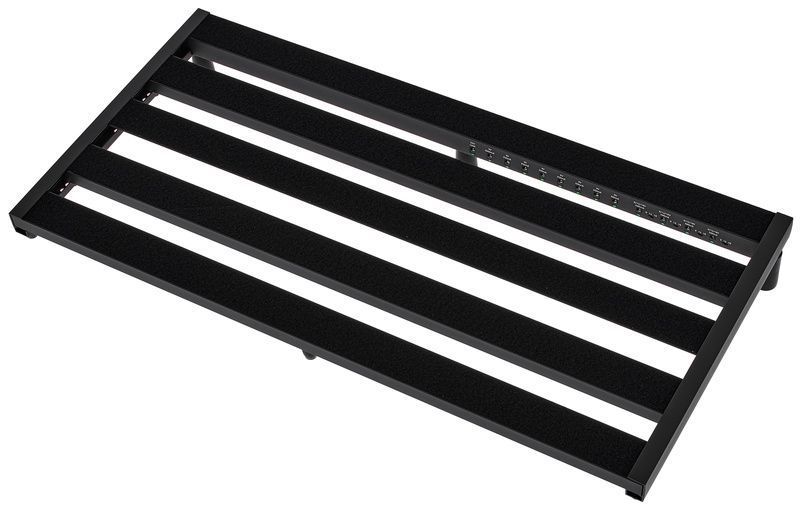

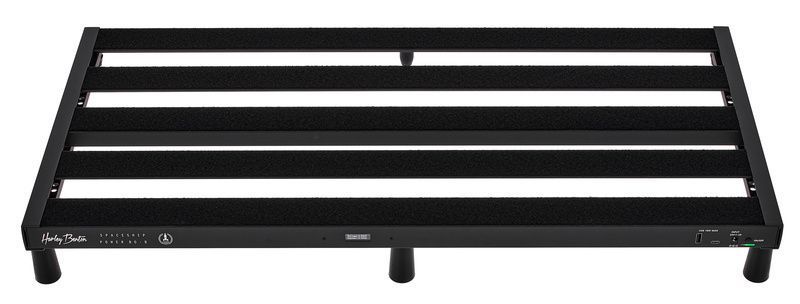

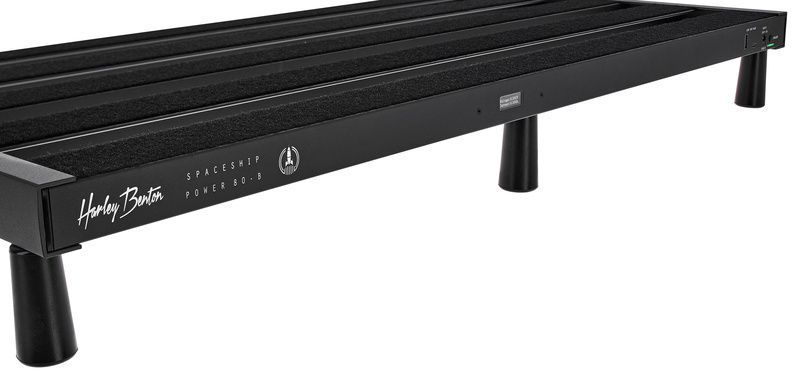

Pedalboard with integrated rechargeable battery power supply

• Compact and light
• Height adjustable
• Robust Powder-coated aluminium frame
• Integrated lithium battery power supply including AC/DC mains adapter for mains connection and charging
• Battery capacity: 7.4 V @ 9000 mAh, 66.6 Wh
• Charging time approx. 3.4 hours
• Max. operating time at full load approx. 1.1 hours
• 11 Individually insulated and 4 non-insulated outputs
• High current capacity for modern digital effects
• LED indicator on each connector

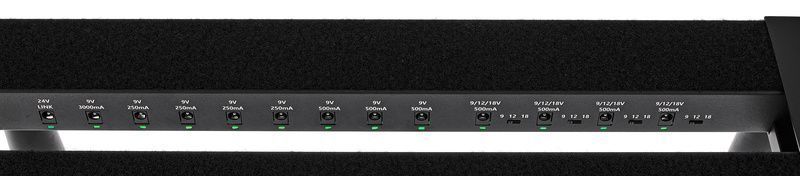

• 11 Isolated outputs to eliminate hum and noise: 4 x 9 V / 250 mA, 3 x 9 V / 500 mA, 4 x 9/12/18 V - 500 mA

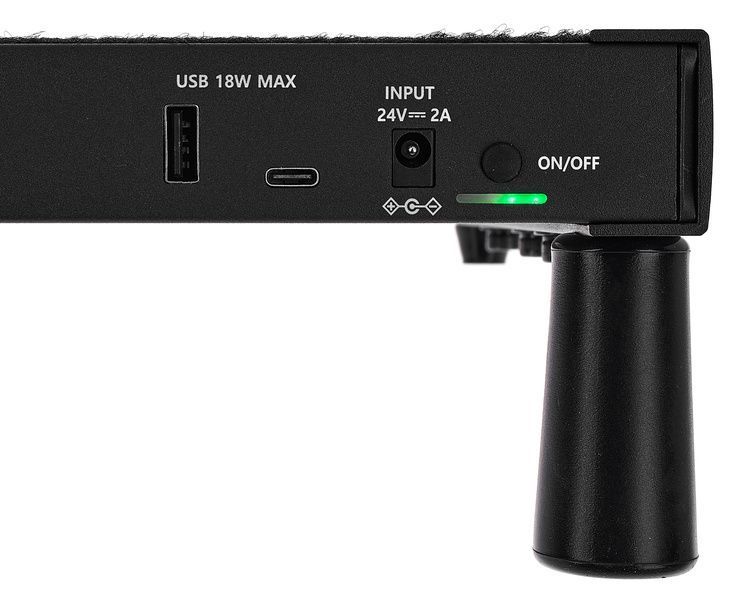

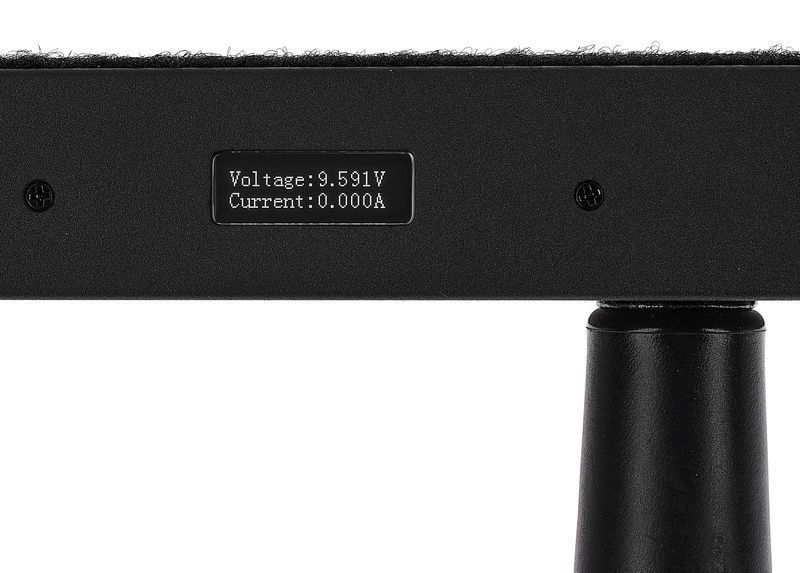

• Non-isolated outputs: 1 x 9 V / 3 A for powering high-power effects and multi-FX devices, with voltage and current display, 1 x 24 V / 2 A, 1 x USB-A for powering and charging tablets and phones, 1 x USB-C, 24 V output connection for additional power supplies
• Total power: 45 W
• Dimensions (H x W x D): 89.5 x 800 x 390 mm
• Weight: 3230 g

Included Accessories

• Padded carry bag with storage compartment and shoulder strap
• 1 x AC/DC power supply unit/EU plug
• Cable set with 4 x 30 cm DC, 5 x 60 cm DC, 4 x 90 cm DC
• 1 x Polarity reversal cable
• 1 x Battery clip
• 1 x DC 2.5 mm / DC 5.5 mm cable
• 1 x DC / 3.5 mm mini-jack cable
• 1 x Voltage boost cable
• 1 x Current boost cable
• 1 x EIAJ-05 cable
• 1 x Cable fixing set
• 2 x Hexagon wrench 5 mm and 6 mm
• 1x Hook and loop straps 400 x 4.5 mm
