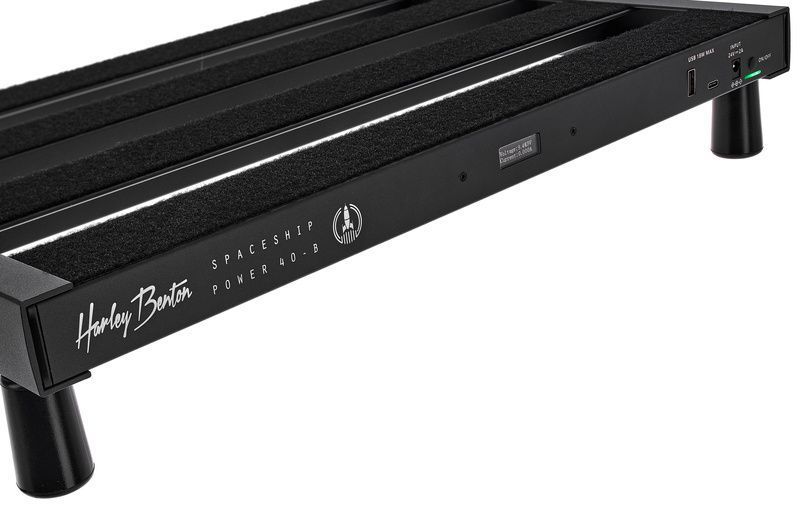

Lightweight Pedalboard with Integrated Battery Power Supply

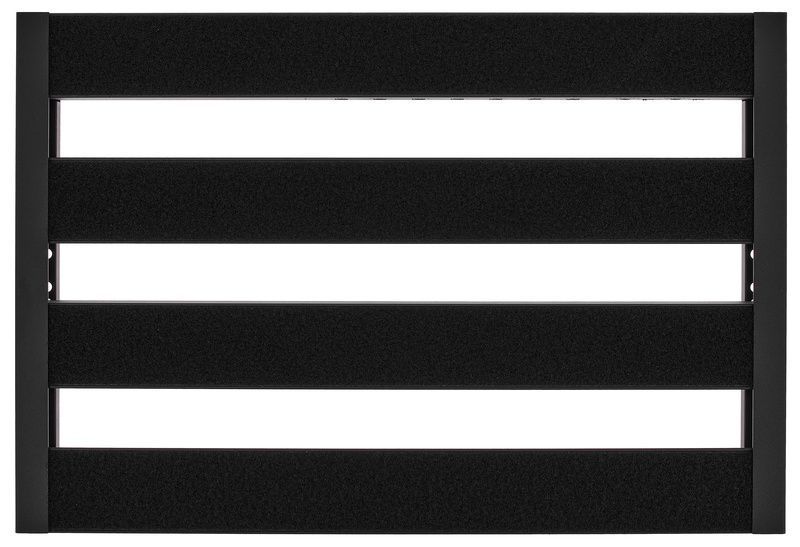

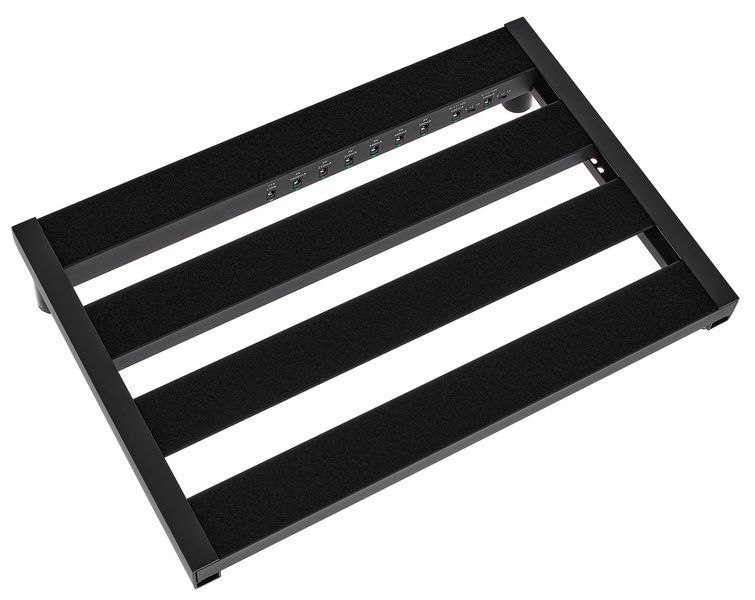

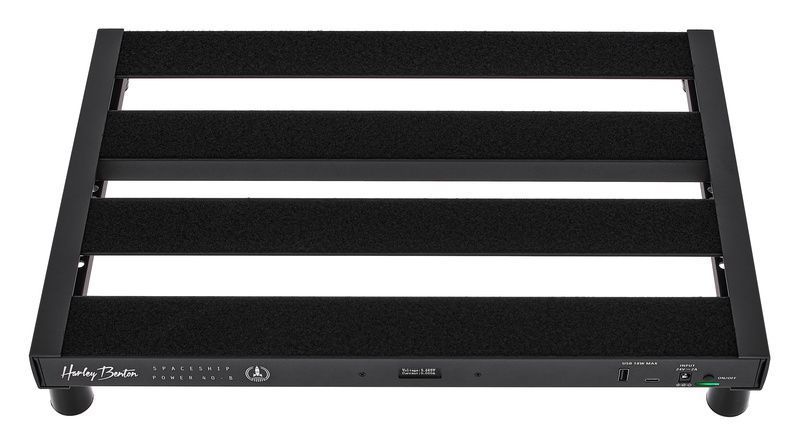

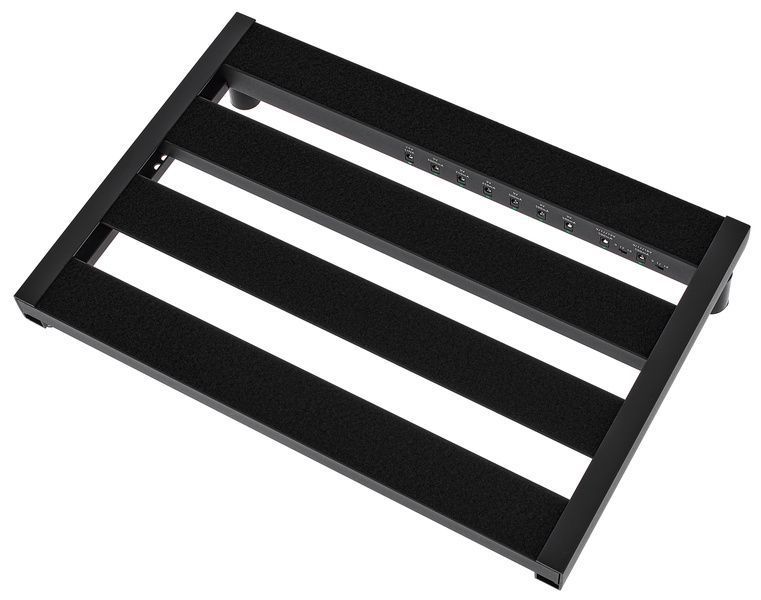

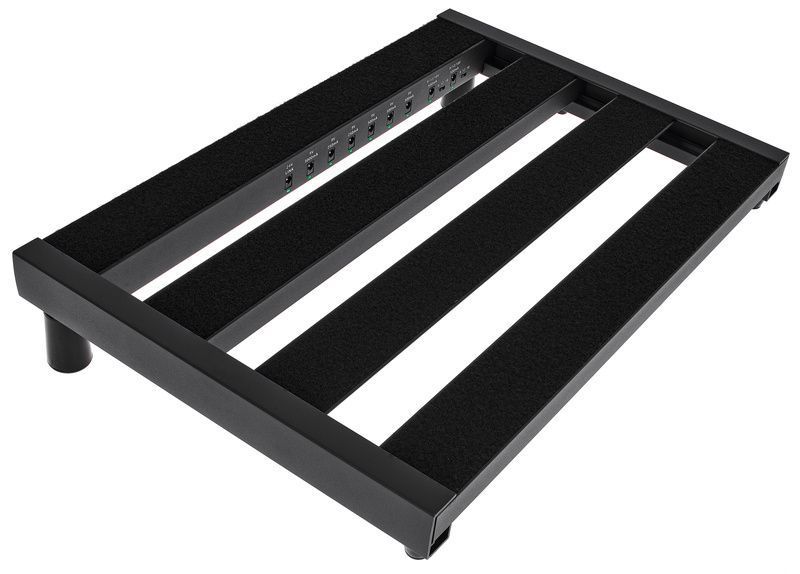

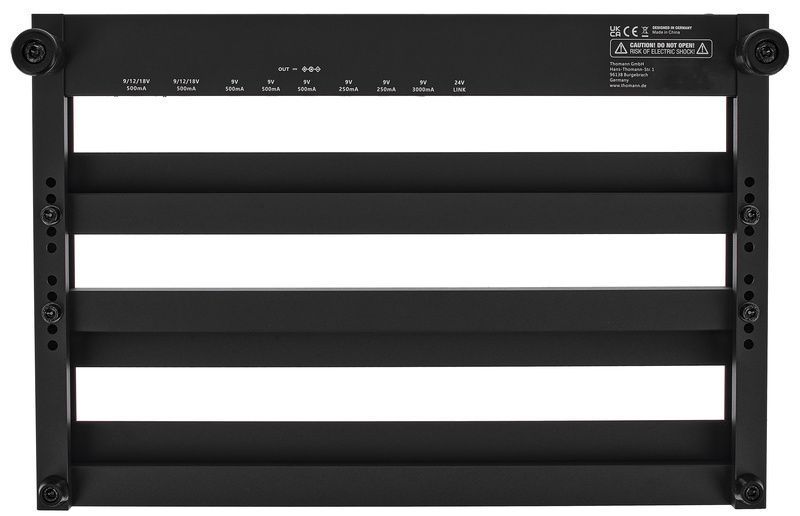

• Robust powder-coated aluminium frame
• Integrated lithium battery power supply with mains adapter for charging
• Battery capacity 7.4 V @ 4500 mAh, 33.3 Wh
• Charging time approx. 1.7 hours
• Max. operating time at full load: approx. 50 minutes

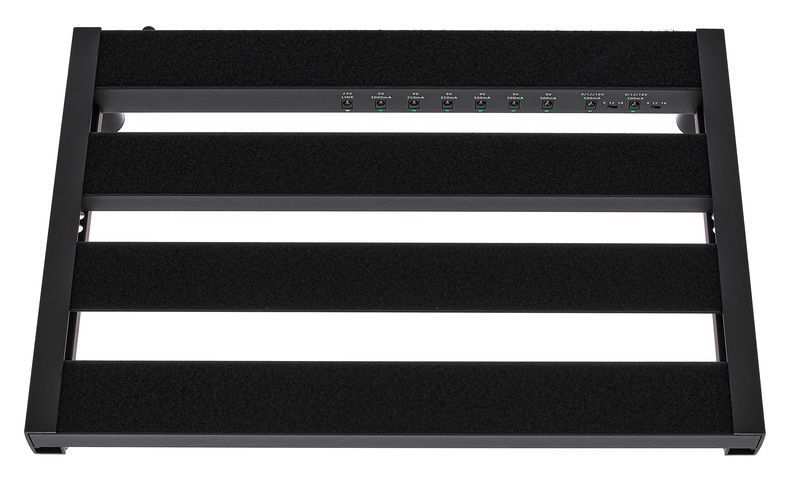

• 7 Individually insulated and 4 non-insulated outputs
• High current capacity for modern digital effects
• LED monitoring at each output

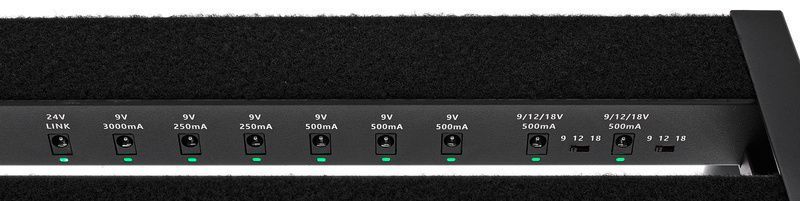

• 7 Isolated outputs to eliminate hum and noise: 2 x 9 V / 250 mA, 3 x 9 V / 500 mA and 2 x 9/12/18 V / 500 mA
• Additional non-isolated outputs: 1 x 9 V / 3 A for powering high-current effects and multi-FX devices

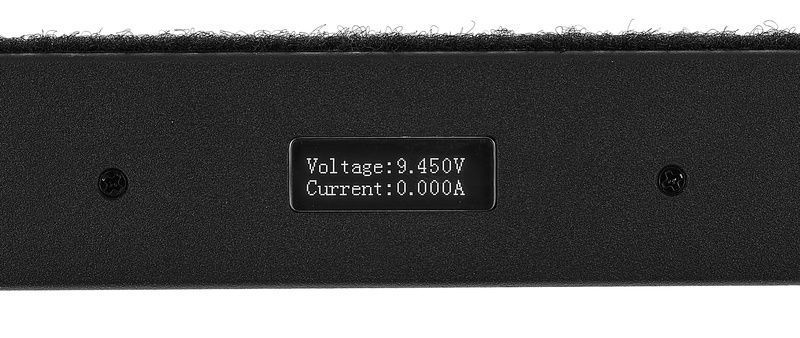

• With voltage and current display
• 1 x 24 V / 2 A

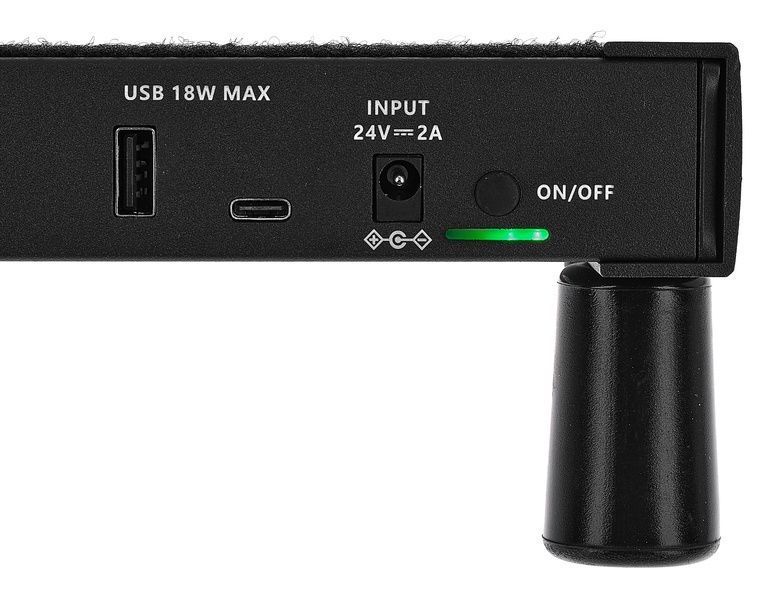

• 1 x USB-A for powering and charging mobile devices
• 1 x USB-C
• 24 V output for connection to additional power supplies
• The total output power must not exceed 31.5 W
• Dimensions: (H x W x D) 75.5 x 450 x 305 mm
• Weight: 1670 g

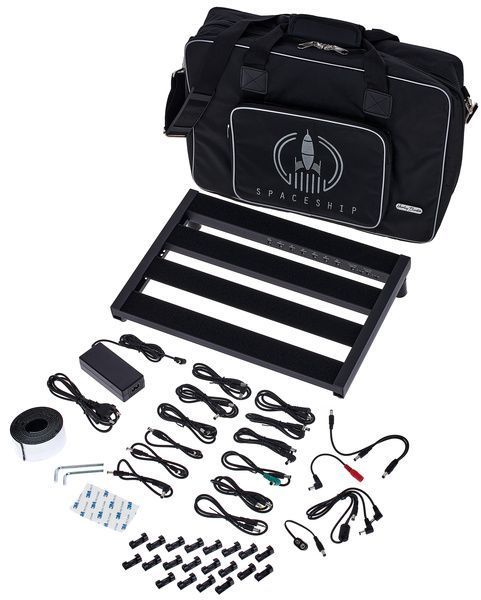

Scope of delivery:

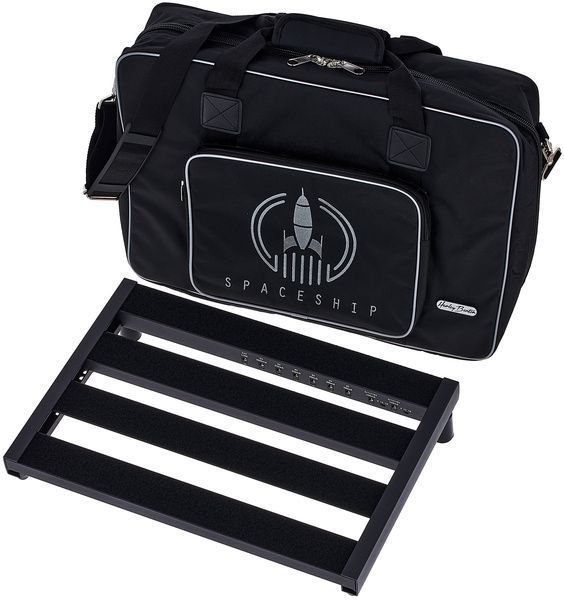

• Padded gig bag with storage bag and shoulder strap
• AC/DC power supply/EU plug
• DC cables: 3 x 30 cm, 3 x 60 cm and 3 x 90 cm
• 1 Polarity reversal cable
• 1 Battery clip
• 1 5525 cable
• 1 3.5" cable
• 1 Voltage booster cable
• 1 Current booster cable
• 1 EIAJ-05 cable
• 1 Cable lock set
• 2 Hexagonal spanners 5 mm / 6 mm
• 1 Hook and loop fastener tape 200 x 4.5 cm
