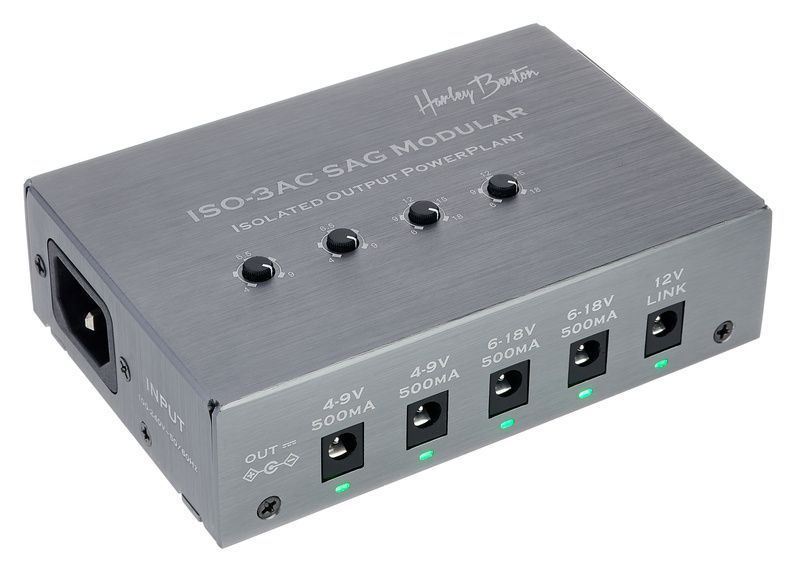

Multi-Power Supply for Effect Pedals

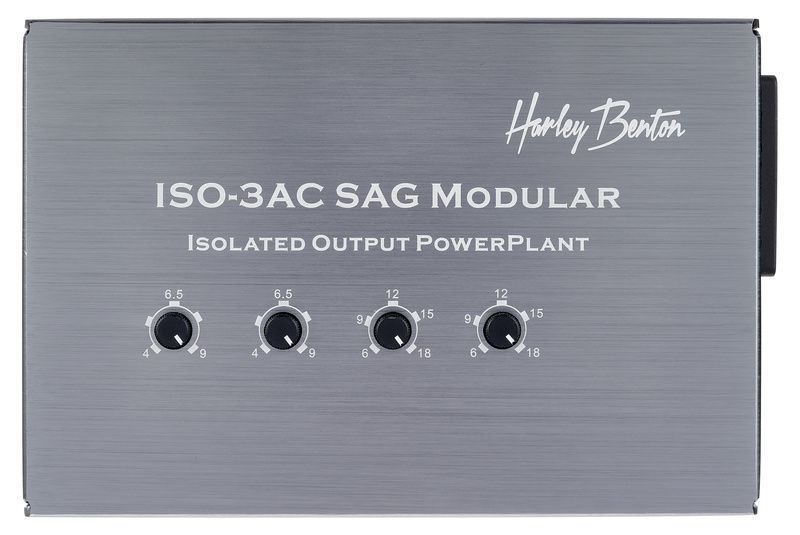

• Multi modular power supply with SAG option for slight voltage reduction for fuzz and distortion effects
• 4 Isolated, filtered and short-circuit-proof outputs eliminate noise and hum
• Plenty of power for modern digital and analogue effects
• LED monitoring at each output
• AC circuit 100 - 240 V Universal input voltage operation

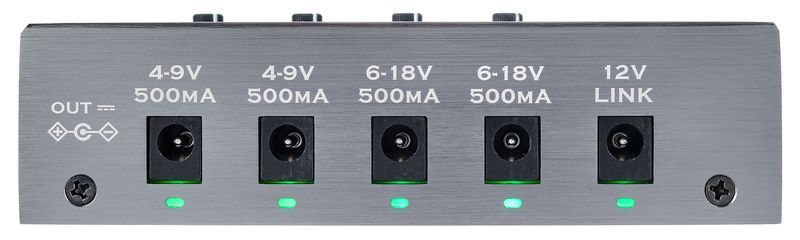

• Connections: Output 1-2: SAG 4-9V DC @ max. 500 mA (individually isolated)
• Output 3-4: SAG 6-18V DC @ max. 500 mA (individually isolated)
• Output 5: LINK 12V DC @ 1A, for supplying additional DC input power supply units
• Polarity: Centre negative

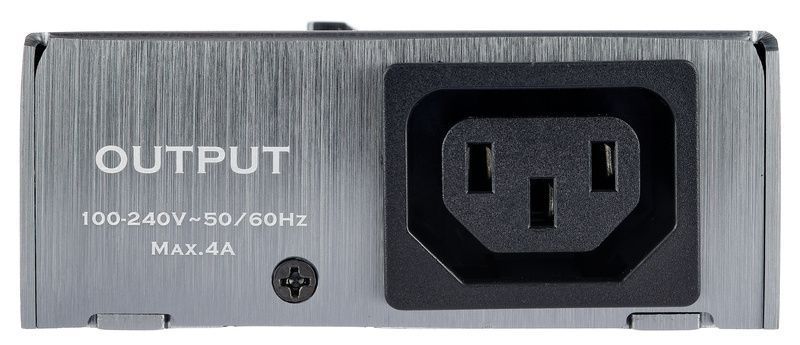

• modular AC main output allows two or more units to be connected by Kettle female to male connector (included) - the total output power must not exceed 21.6 W
• Sturdy, compact aluminium housing
• Can be used on or under pedalboards
• Dimensions (W x D x H): 130 x 88 x 35 mm
• Weight: 400 g

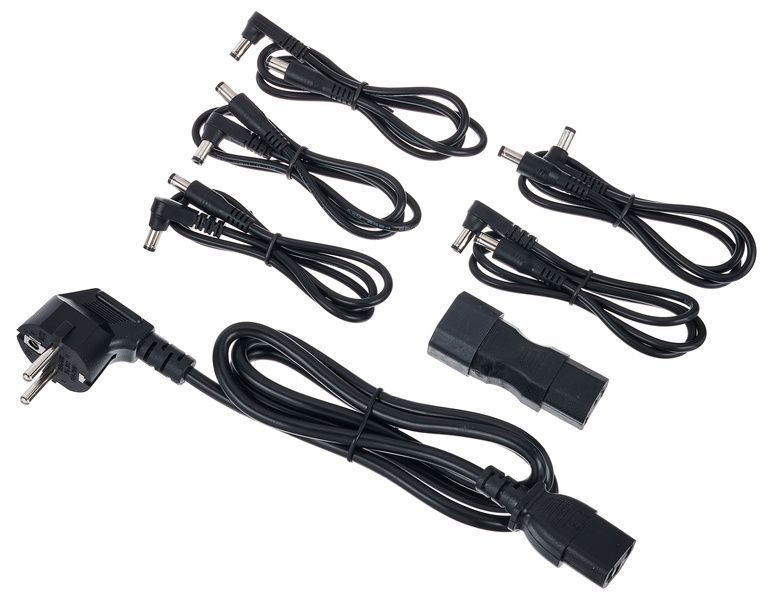

• Includes 5x DC cable 60 cm 5.5 x 2.1 mm straight/right-angled, 1x AC mains cable EU plug 1.2 m and 1x kettle socket to plug
